Dear customers, it means the origin of the coordinate, it's the position of "0" on the coordinate.

For all our brush machines, no matter it's a 2-axis, 3-axis, 4-axis or 5-axis machine, all the axes work according to a standardized position -- "Origin(0)" of the coordinate! Basing on "Origin (0)", all the program data is thus calculated precisely.

Under these situations, operator should press "Origin":

1) After turning on the computer;

2) Before using "Work" mode;

3) Before setting up a new program under "Teach" mode;

4) Before changing data under "Modify" mode;

5) After changing data under "Modify" mode

6) After finishing working.

Important Notice:

Before operator presses "Origin", it's very important that he must check whether the tufting-pole is at the highest position. Operator is allowed to press "Origin", only on condition that the tufting-pole is at the highest position! When the tufting-pole is at half-high or low position, it's not allowed to press "Origin", so as to avoid a possible crash. It's demonstrated as below.

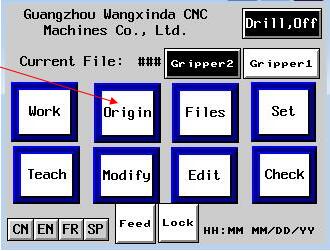

Correct position to press "Origin"

If you still have some other questions regarding "Origin", please do feel free to contact us at chloe@brushmachine1.com, it'll be our pleasure to hear from you.
